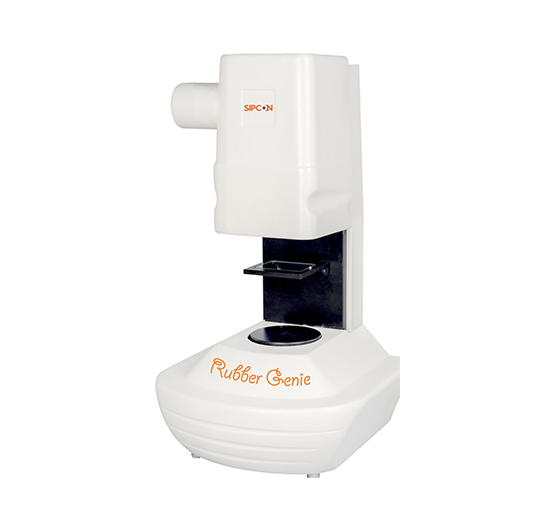

Rubber Seal Genie
Sipcon Rubber seal genie is a perfect combination of precise lenses, excellent lighting to give sharp, clear image with outstanding accuracy. Seal or weatherstrip measurement can be very challenging because of the size, softness, deformations, handling difficulty, swinging issues. Rubber seal genie is ideal for rubber seal or weatherstrip measurements in one click.
Salient Features
- Measurement in less than 5 seconds
- No operator to operator variation
- No need for alignment
- No need to match with physical drawings – Align with DXF electronically
- No manual intervention
This Product Is Ideal For
Double Bulb, Multi Bulb
Round Bulb or Fin Type Seal
Door, Panel, Bonnet, Sunroof
Window, Hood, Cowl
Car, Tractor, Truck
Sipcon Rubber seal genie is absolutely user friendly system for fast and accurate inspection of any type of automotive seals. Available in Vertical configuration to measure all the parameters in one setup. Field of view options start from 16mm and go up to 150mm so choose according to your requirement.
| Model | SVI-SG-64 | SVI-SG-80 | ||||
|---|---|---|---|---|---|---|
| FOV Length X Width | 64x48mm | 80x60mm | ||||
| Camera | 1 | |||||
| Accuracy | ±15μm | |||||
| Repeatability | ±10μm | |||||
| Least Count | 0.1μm | |||||
| Illumination-Surface (optional) | Ring LED Light | |||||
| Illumination-Countour | Telecentric LED Light | |||||
| Focusing Range(Optional) | Optional(30mm) | |||||
| Power Supply | 110/220V @ 50Hz ±5% | |||||
| Machine Weight | 40Kgs. | 40Kgs. | ||||
| Interface | USB/Ethernet | |||||
| Optional Hardware | Laptop/PC with WIN10 operating system | |||||
| Base Platform & Column | Metal | |||||
| Auto Alignment | 360° Compensation | |||||
| Touch Screen Monitor | Optional | |||||
| Table | Optional | |||||
| Software Features | ||||||
| Tools | Point / Line / Circle / Arc / Distance / Angle / Extreme High Point | |||||
| Advance Features | AutoTools / Auto Edge Detection / DXF Overlay / Result on Images | |||||
| Multiple Reference Dimensions | Yes | |||||
| Coordinate System Configuration | Yes | |||||
| Deviation Analysis By DXF overlay | Yes | |||||
| Result on Images | Yes | |||||
| Report Format | Customizable | |||||
| Foot Switch | Optional | |||||
Benefits Of This Products
High Accuracy
Measure spring within 3 micron accuracy.
Superb Image Clarity
Negligible distortion lenses give bright and sharp images.
Easy Operation
Just 2 clicks and you have the report of measurement.
High Throughput
Measure multiple seals in one field of view.
User Friendly Interface
No training required to operate the machine.
